BLEBOX wLightBoxS Pro Viedais LED dimmera kontrolieris ar ārējo antenu 12-24V DC

This is the BLEBOX wLightBoxS Pro — a 5-channel PWM LED dimmer that brings smart control to any 12-24V DC installation, with an external antenna that keeps Wi-Fi signal strong even when the controller is tucked inside a metal cabinet or behind drywall.

Who it's for

Perfect for DIYers and pros who want to upgrade LED strips, under-cabinet lights, or architectural lighting without adding a hub. If you're already using Home Assistant or MQTT, this controller slots right in.

Main advantages

• 5 channels handle single colour, CCT, RGB, RGBW, and RGBWW — one unit covers most LED setups.

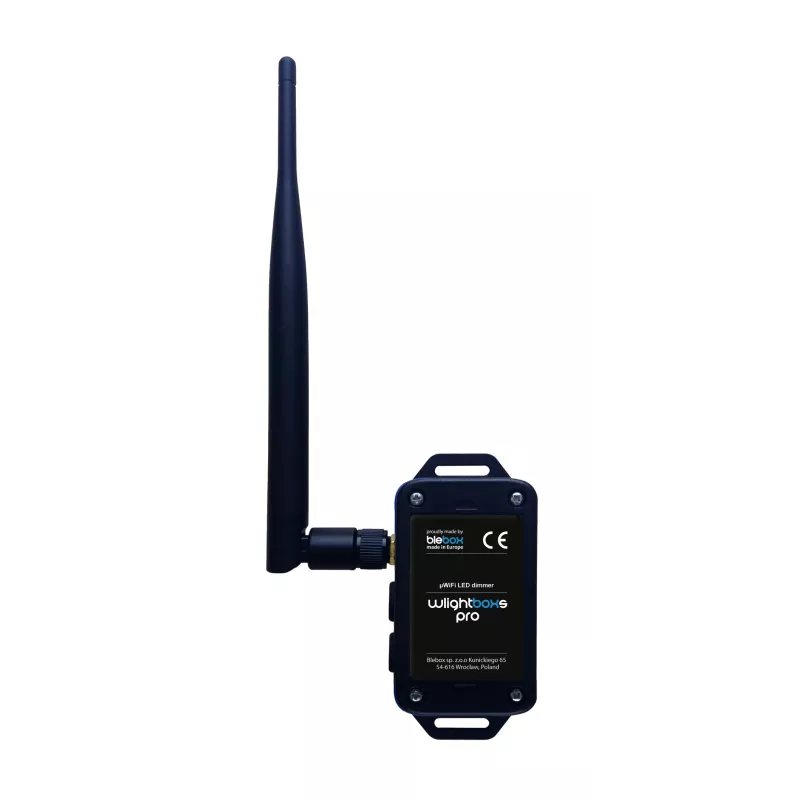

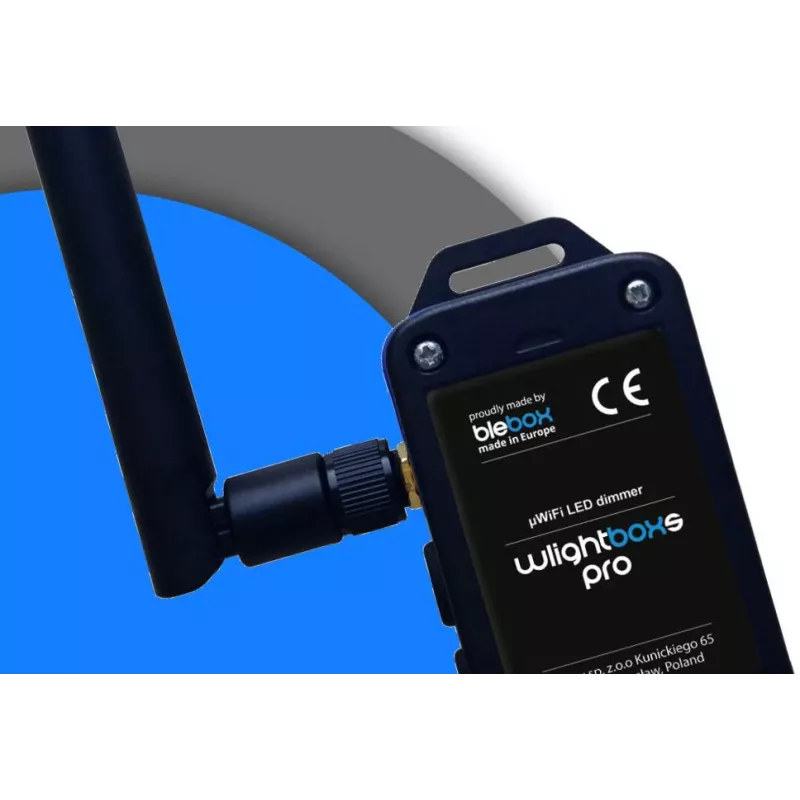

• External SMA antenna means reliable Wi-Fi even in shielded or remote spots.
• Direct control via the free BleBox app — no extra gateway needed.
• Works with REST API, MQTT, and Home Assistant for advanced automation.
• Built-in overload, overheat, and reverse polarity protection keep your LEDs safe.
• Wide input range: 12-24V DC, total output up to 12A (144W at 12V, 288W at 24V).
• Compact ABS case with screw terminals — install in minutes.

Key specs

• Input: 12-24V DC
• 5 PWM output channels
• Max total current: 12A
• Max power: 144W @ 12V, 288W @ 24V
• Wi-Fi 802.11 b/g/n (2.4 GHz), WPA/WPA2
• External antenna, SMA connector
• Operating temp: -20°C to 50°C
• ABS housing
• Protection: overload, overheat, reverse polarity
• Control: BleBox app, REST API, MQTT, Home Assistant

How to use

Connect your LED strip to the screw terminals, power up with 12-24V DC, and pair via the BleBox app. Set up scenes, schedules, or link to your smart home system. For best Wi-Fi, keep the antenna clear of metal.

Tip: Before wiring, double-check polarity and total load — the controller protects against mistakes, but it's always better to avoid them. For advanced users, MQTT gives you full control over every channel.
