JAVEL virsapmetuma trīskāršā kārba 6 moduļiem M45 balta

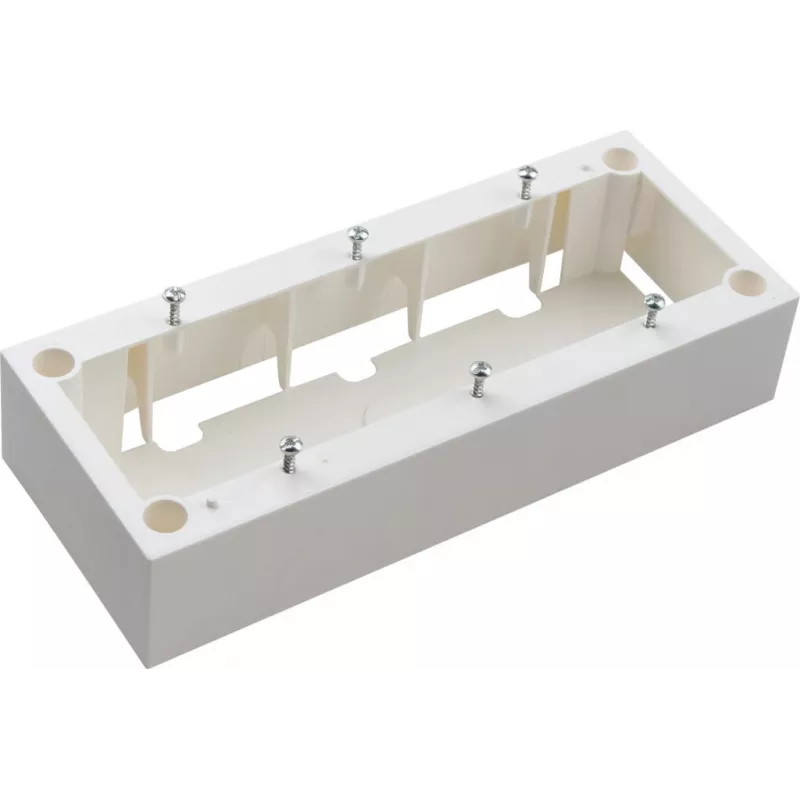

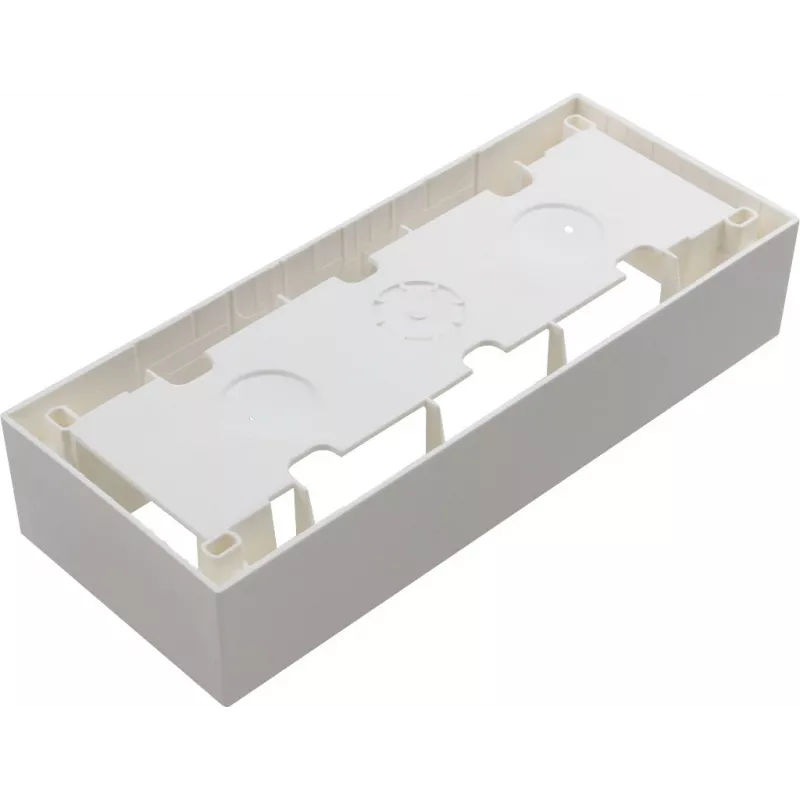

JAVEL's surface-mounted triple box is a straightforward answer when you need to mount multiple modules on a wall without cutting recesses. It takes up to six M45 modules (45x45 mm) in a triple-section layout, so you can mix switches, sockets, data ports, and other Simon 54 series inserts in one clean enclosure. The white ABS plastic housing blends with most interiors and installs with simple screw-on mounting.

Key specifications

• Product type: surface-mounted installation box
• Series compatibility: Simon 54
• Module capacity: 6 modules (M45 standard, 45x45 mm)
• Number of sections: 3
• Mounting: surface (screw-on)
• Material: high-quality ABS plastic
• Colour: white
• IP protection: IP20 (indoor dry locations)
• Impact resistance: IK05
• Halogen-free: yes
• Operating temperature: -5°C to +40°C
• Fire resistance: glow-wire test 850°C
• Certifications: CE
• Manufacturer: Kontakt-Simon

Why choose it

This box is built for flexibility and durability. Integrated knockouts let you route cables from multiple directions, and the ABS housing handles everyday bumps. The triple-section design keeps power, data, and control functions organized under one faceplate, reducing wall clutter. Being halogen-free and CE-certified, it's a safe pick for modern installations.

Ideal use cases

• Adding extra sockets or switches where chasing walls is impractical.
• Installing data and AV modules alongside power in offices or home theaters.
• Retrofitting older buildings with surface-mounted wiring systems.
• Creating modular control panels in workshops or utility areas.

Good to know

This box is for indoor use only (IP20). It works with all Simon 54 series modular inserts that have M45 dimensions. For a complete setup, you'll need the inserts and a compatible cover frame (sold separately). Always follow local wiring regulations and use appropriate fixing screws for your wall type.

Tip: Plan your module layout before mounting—knockouts and screw positions are easier to manage when you know where cables will enter.
