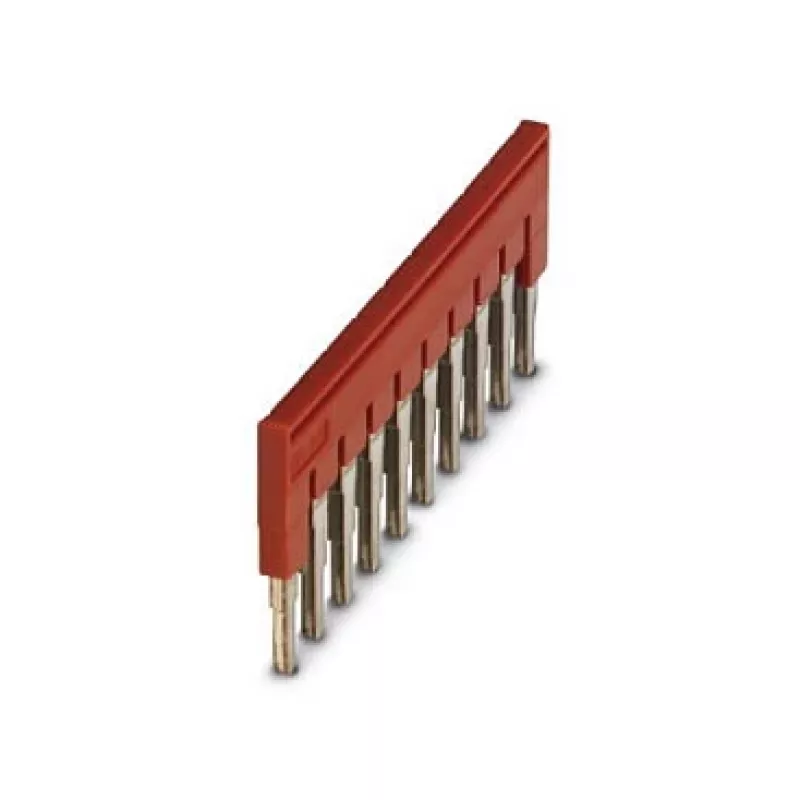

Phoenix Contact 3030271 FBS 10-6 spraudņu tilts, 10 pozīciju, 6,2 mm solis, sarkans

Designed to slash wiring time and eliminate potential errors, the Phoenix Contact 3030271 FBS 10-6 plug-in bridge lets you link up to ten adjacent terminal blocks in one swift push. No more daisy-chaining wires or hunting for loose connections—just snap it on and you've got a solid, common potential rail across your entire row.

Why You'll Use It

• 10-position bridge for 6.2 mm pitch terminal blocks—covers a full row in one go
• Rated voltage 500 V (IEC) and surge voltage 6 kV, so it handles real industrial power
• 24 A current rating—plenty for typical control circuits
• Flame-retardant polyamide housing (UL 94 V0) shrugs off heat and vibration
• Wide -60 °C to 105 °C range—works in cold storage or hot cabinets
• Bright red color—you'll spot it instantly during maintenance

Who It's For

If you're building control panels, junction boxes, or wiring up machinery, this bridge is your shortcut to clean, reliable potential distribution. It's a no-brainer for electricians and panel builders who value speed without sacrificing safety. The secure plug-in fit stays put even under thermal cycling or constant vibration.

Key Specs at a Glance

• Type: Plug-in bridge, 10 positions
• Pitch: 6.2 mm
• Rated voltage (IEC): 500 V
• Rated surge voltage: 6 kV
• Rated current: 24 A
• Material: Polyamide (PA), red
• Flammability: UL 94 V0
• Temperature range: -60 °C to 105 °C
• Approvals: IEC 60947-7-1, UL, cUL, EAC
• Overvoltage category III, pollution degree 3

How to Use It

Just align the bridge with the feed-through positions on your terminal blocks and press down firmly until it clicks into place. That's it—you've created a common potential across all ten points. No tools, no extra hardware. When you need to change something, pull it off just as easily.

Tip: Use the red FBS 10-6 to mark your phase or common potential—it'll save you time tracing wires later. And because it's rated for harsh environments, you can trust it in the toughest spots.
